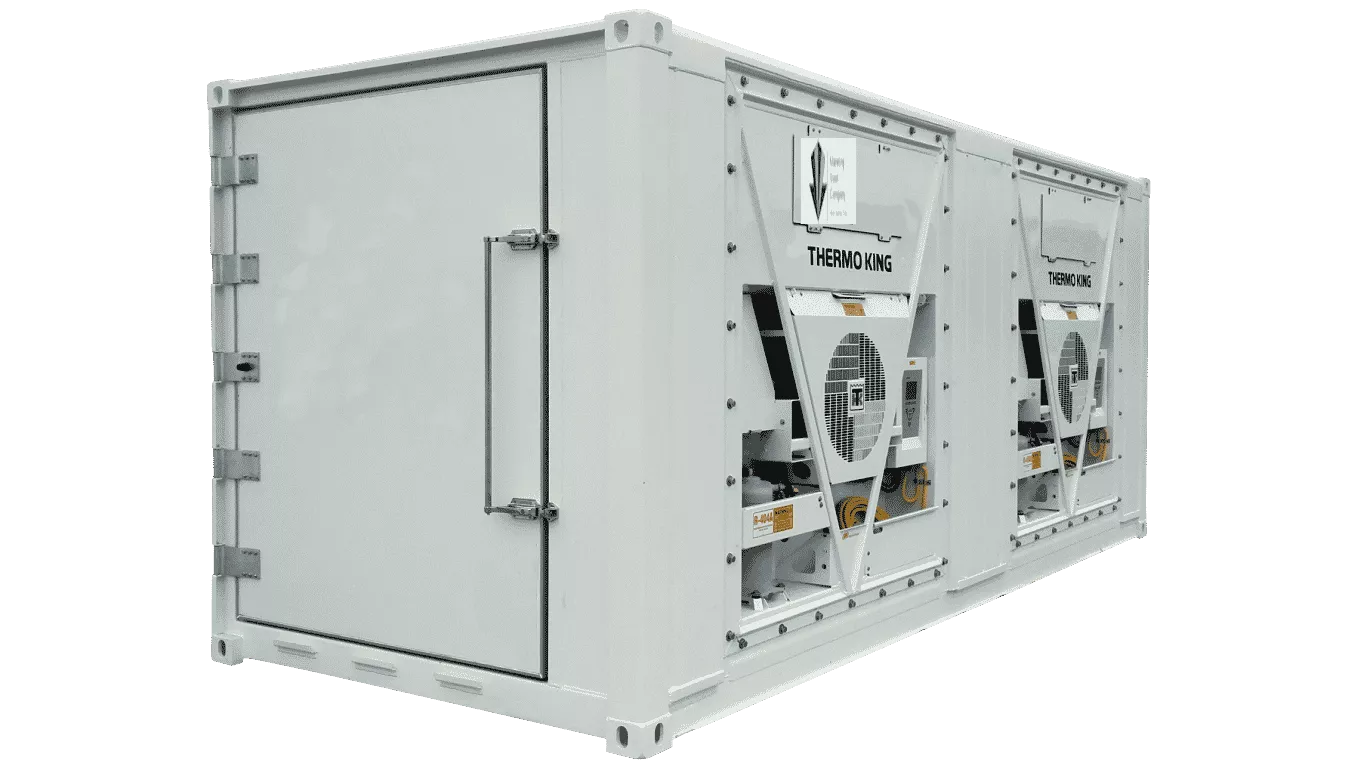

20ft Industrial Blast Freezer Container | -40°F to 70°F Rapid Cooling | 23.8m³ High-Payload 3-Phase Unit

Achieve rapid thermal stabilization with this 20ft Industrial Blast Freezer Container. Engineered for high-throughput environments, this unit provides a versatile temperature range from -40°F to 70°F. Specifically designed for flash-freezing perishable inventory and high-value industrial materials, it features a robust dual-voltage refrigeration plant compatible with 460V and 230V 3-Phase power systems. The structure is reinforced with high-density polyurethane insulation to ensure minimal thermal leakage during intensive cooling cycles.

Key Technical & Structural Features:

• Rapid Blast Cooling Efficiency: Engineered for maximum heat extraction, featuring a Umax = 30 kcal/deg.C.hr heat leakage rating. This ensures rapid temperature pulldown while maintaining a stable internal environment.

• High-Density Thermal Insulation: Outfitted with specialized insulation layers for maximum energy retention: 90mm (Roof), 65mm (Side Walls), and a reinforced 101mm (Floor). This multi-stage insulation maintains thermal integrity even in extreme ambient conditions.

• Precision Airflow Management: Designed with a maximum air leakage value of 14 m³/hr, including the refrigeration unit. This precision seal ensures that the blast cooling environment remains consistent and wind/watertight (WWT).

• Industrial Load Capacity: With a maximum payload of 20,550 kg (45,310 lb), the unit is reinforced to handle high-density cargo loading and heavy industrial equipment.

• Heavy-Duty Cargo Access: Features a wide-profile door opening (1.73m W x 2.23m H) to facilitate rapid pallet loading and unloading, optimized for industrial warehouse workflows.

Technical Specifications:

• Temperature Range: -40°F to 70°F

• Internal Capacity: 23.8m³ (841 Cu.ft)

• Power Requirements: 460V / 230V 3-Phase

• Max. Gross Weight: 24,000 kg (52,910 lb)

• Tare Weight: 3,450 kg (incl. unit)

• Max. Payload: 20,550 kg (45,310 lb)

Dimensional Data Sheet:
