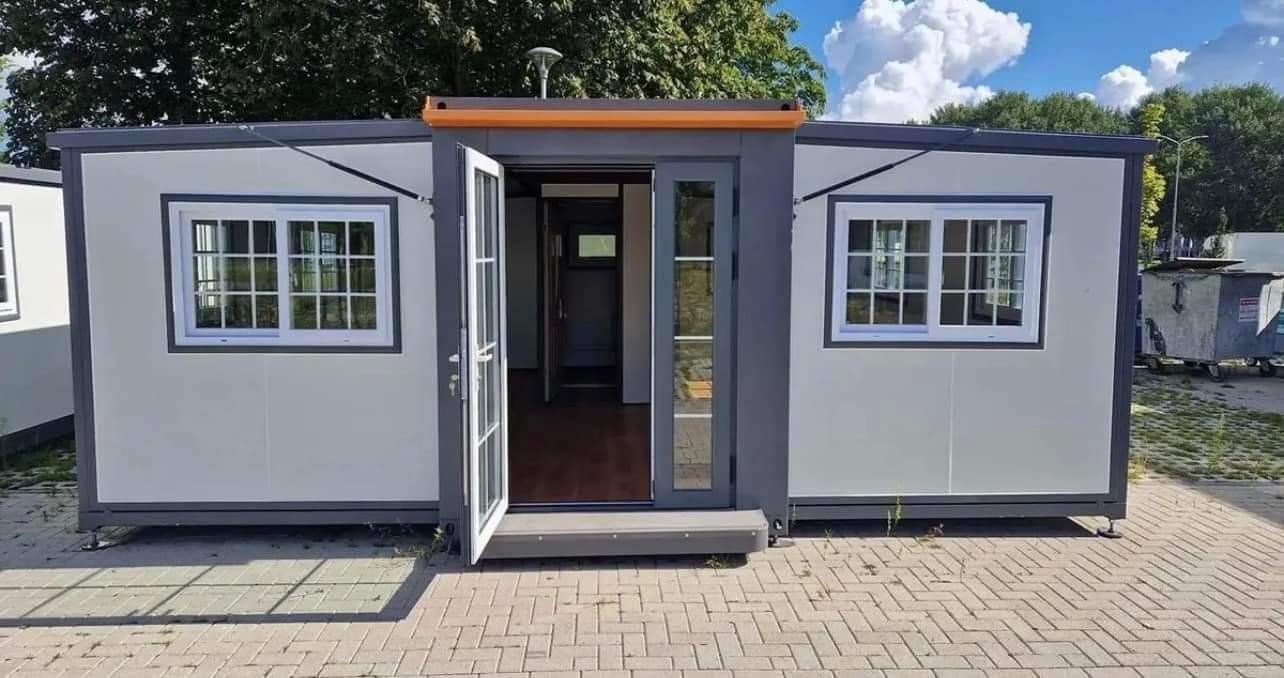

380sqft Expandable Custom Container Home – Modern 19ft x 20ft Modular Steel Living Unit

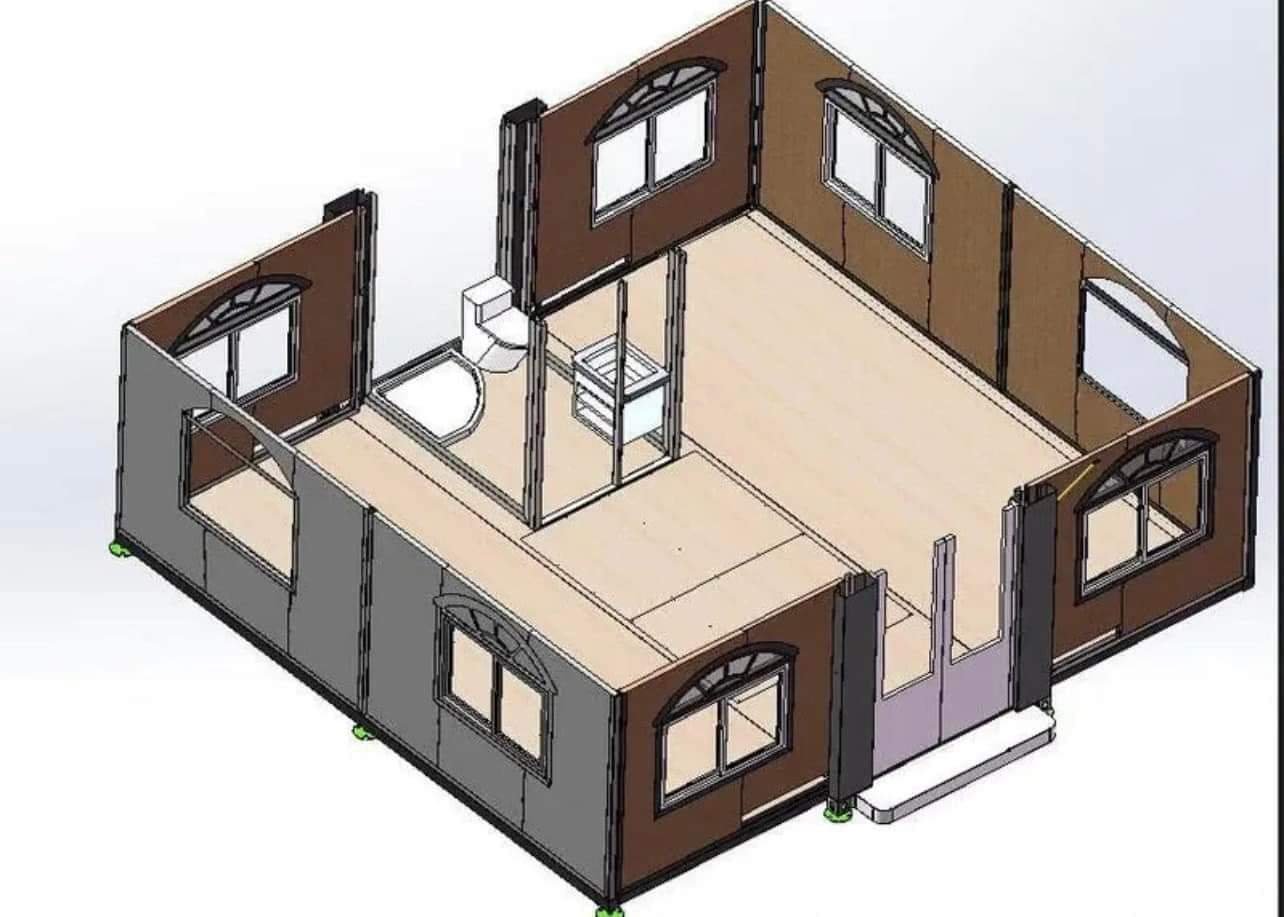

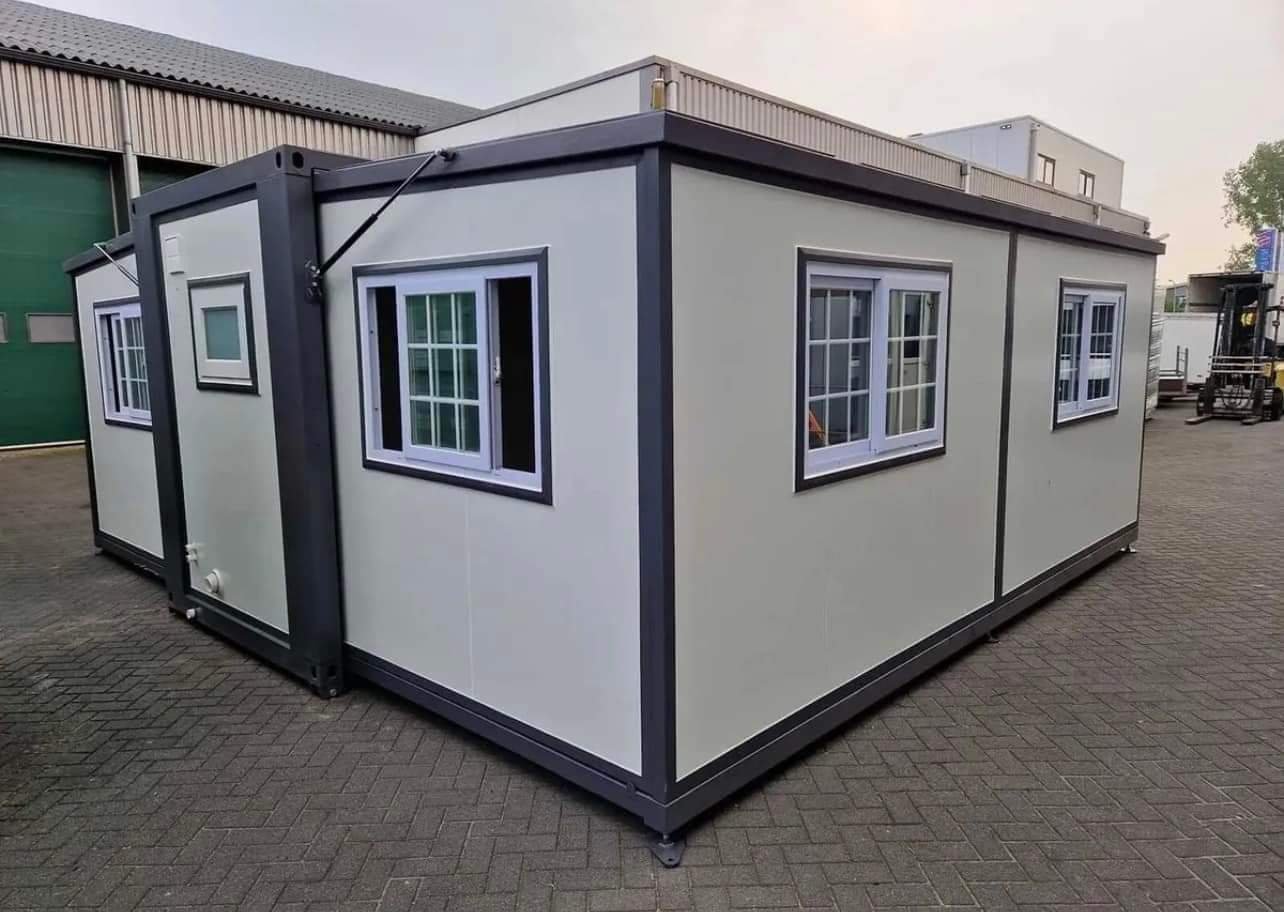

Redefine your living space with this 380sqft (35.3m^2) Fully Customized Expandable Container Home. Engineered for rapid installation and long-term durability, this modular unit features a precision-welded steel frame and high-performance thermal insulation. The innovative expandable design allows for a compact transport profile that unfolds into a spacious, well-appointed interior, complete with a fully equipped restroom and modern aesthetic finishes.

Key Technical & Architectural Features:

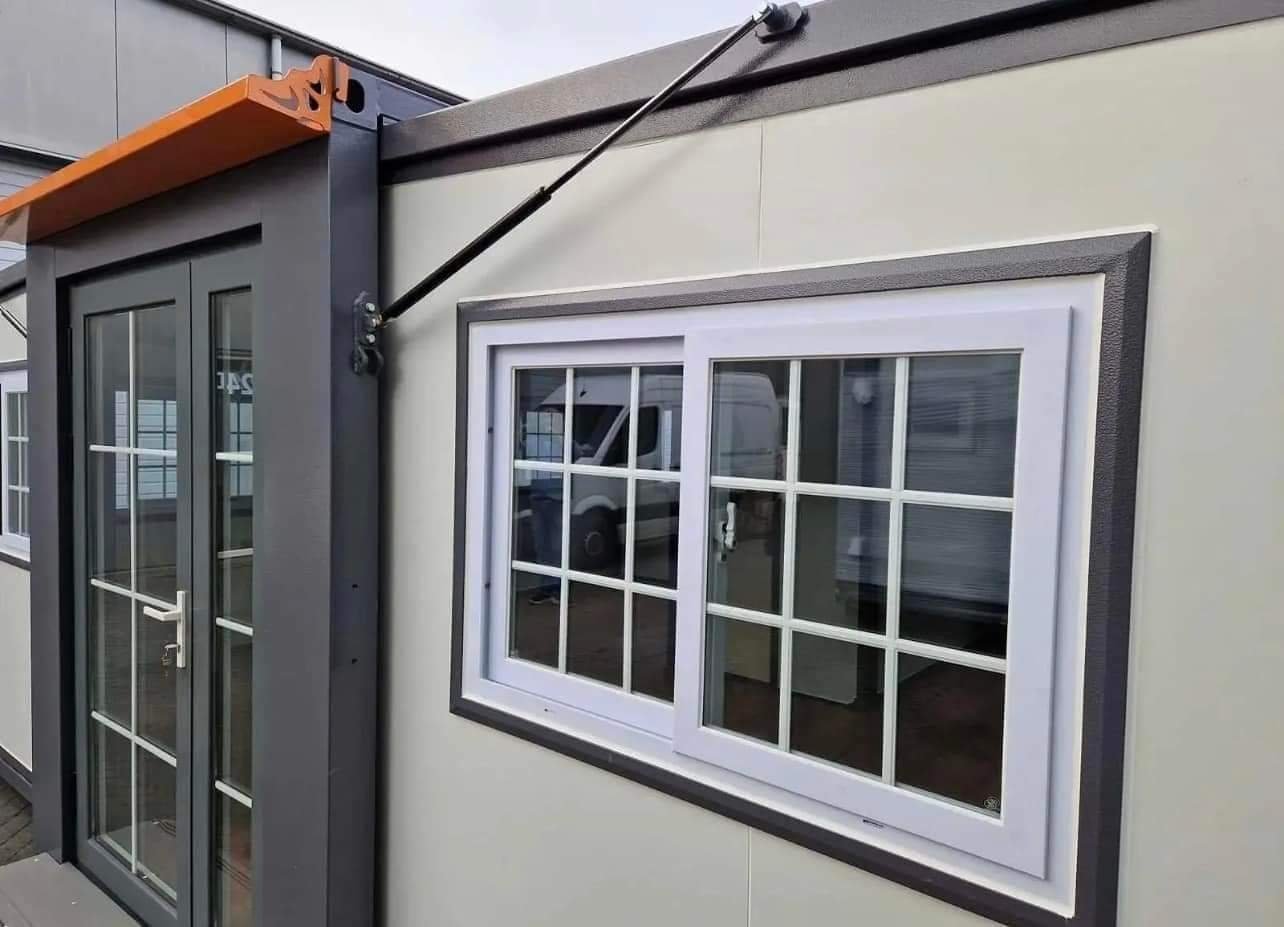

• Reinforced Steel Chassis: Built on a high-integrity steel frame with a specialized hydraulic brace system (3,000N pressure) and 2,000 lbs hinge pulley blocks for effortless expansion and structural stability.

• Superior Thermal Insulation: Outfitted with flame-retardant foam wallboards and a magnesium-manganese thermal insulation roof. This multilayer shielding ensures energy efficiency and fire safety in diverse climates.

• Precision Glazing: Features double-layer tempered glass-plastic-steel sliding lattice windows, providing excellent acoustic insulation and thermal retention while maximizing natural light.

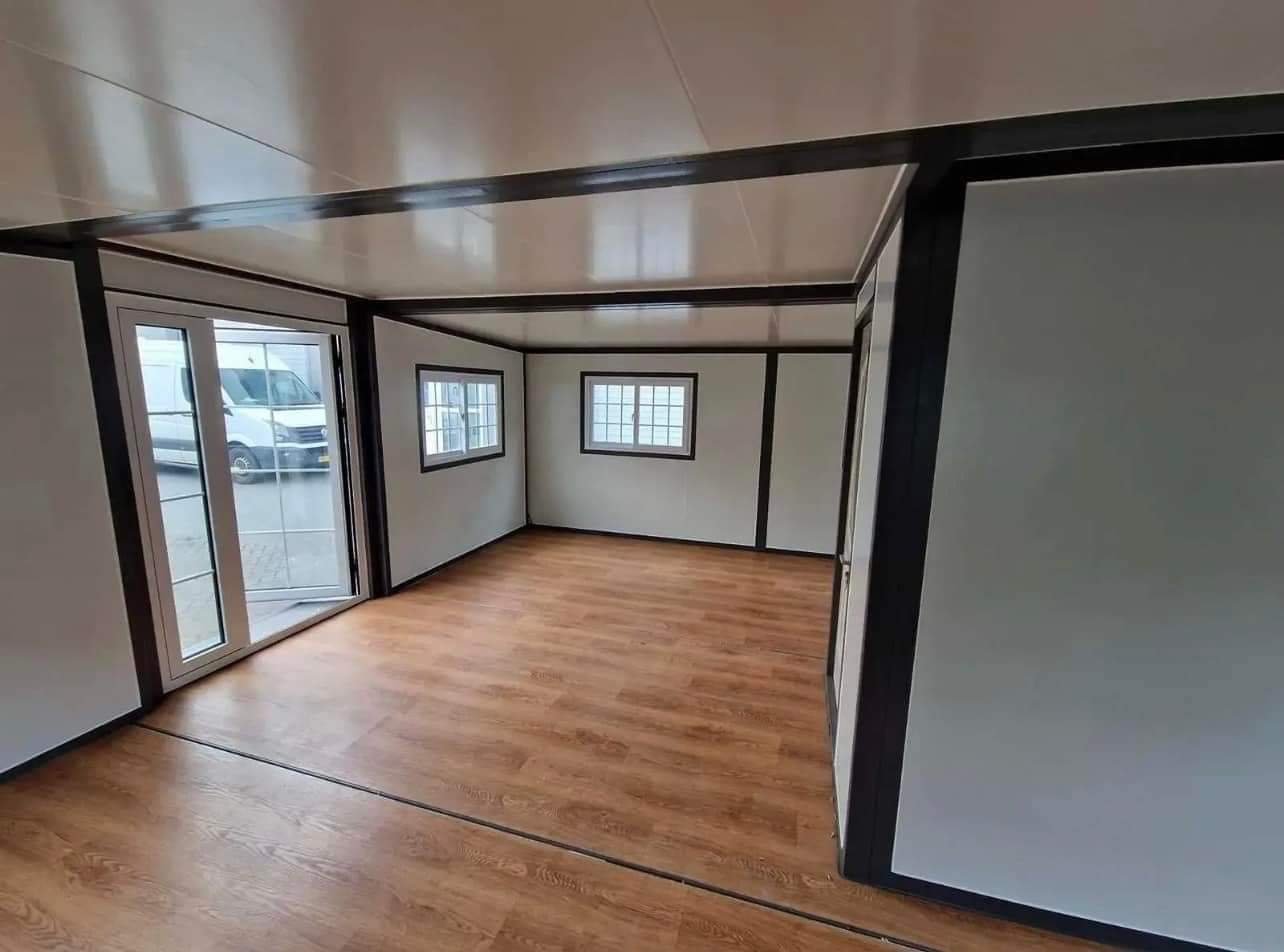

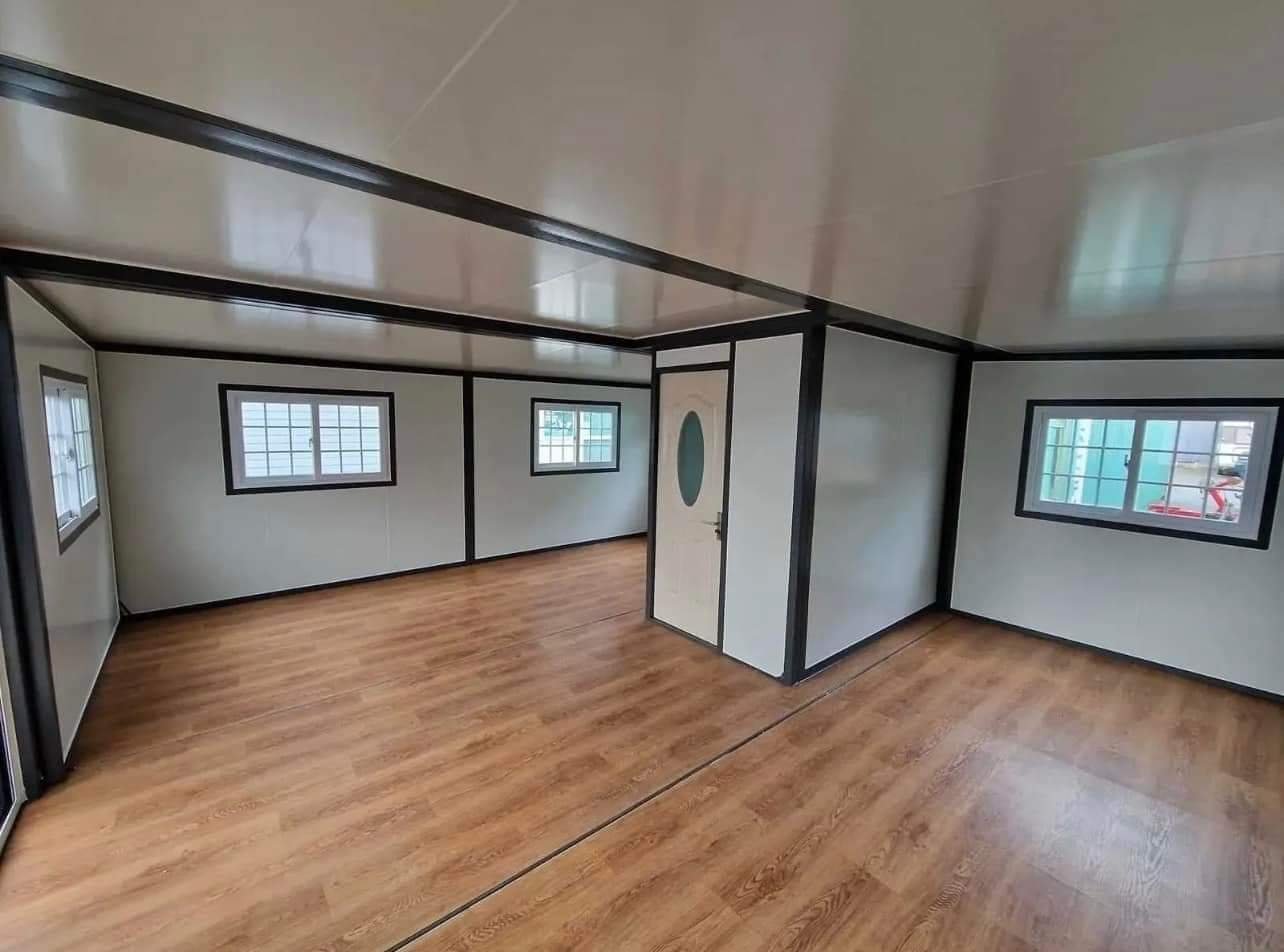

• Resilient Interior Flooring: Utilizes a high-density glass magnesium subfloor finished with 2.0mm ($0.08$-inch) wear-resistant laminate floor leather, designed for high-traffic durability and easy sanitation.

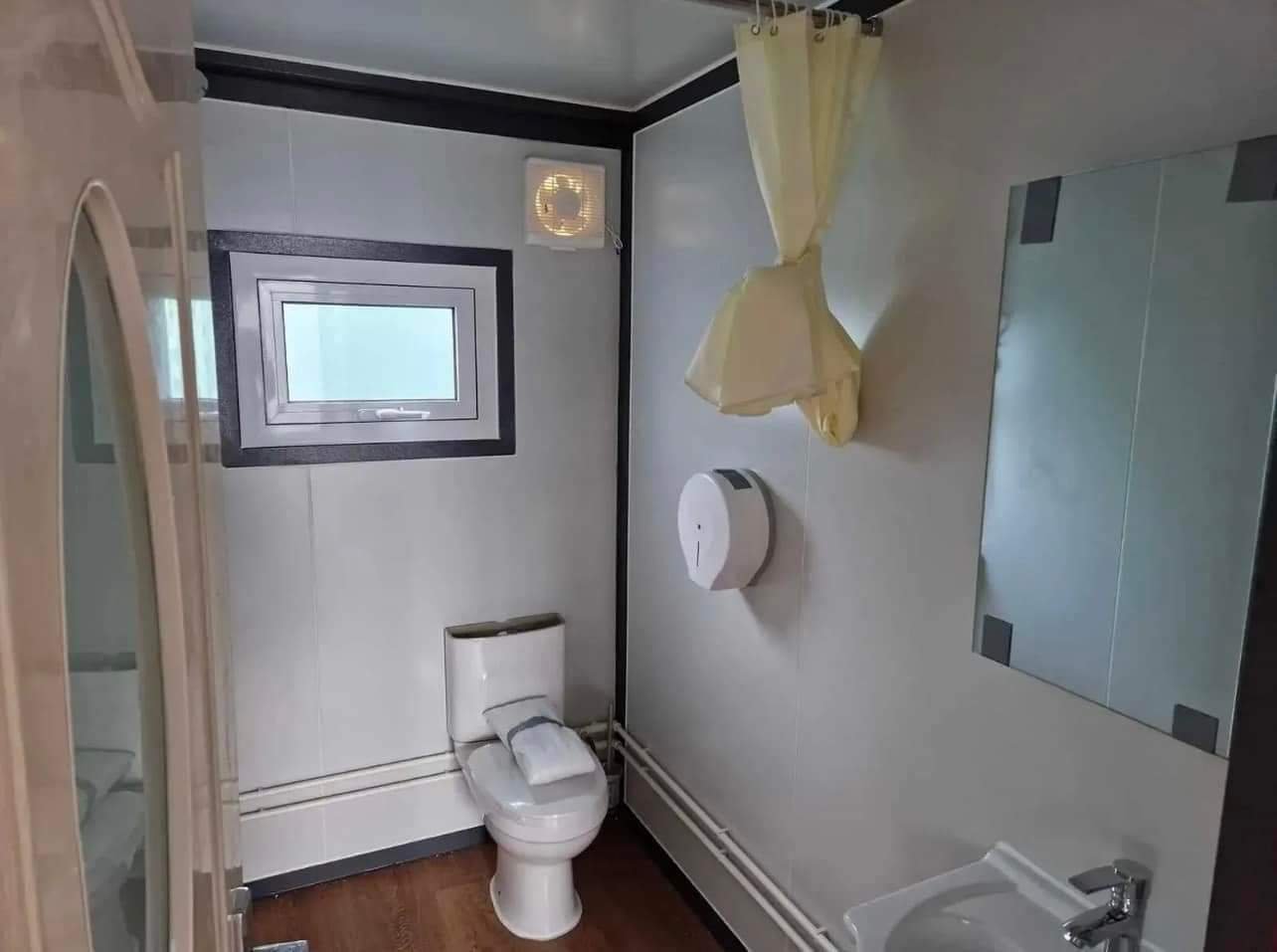

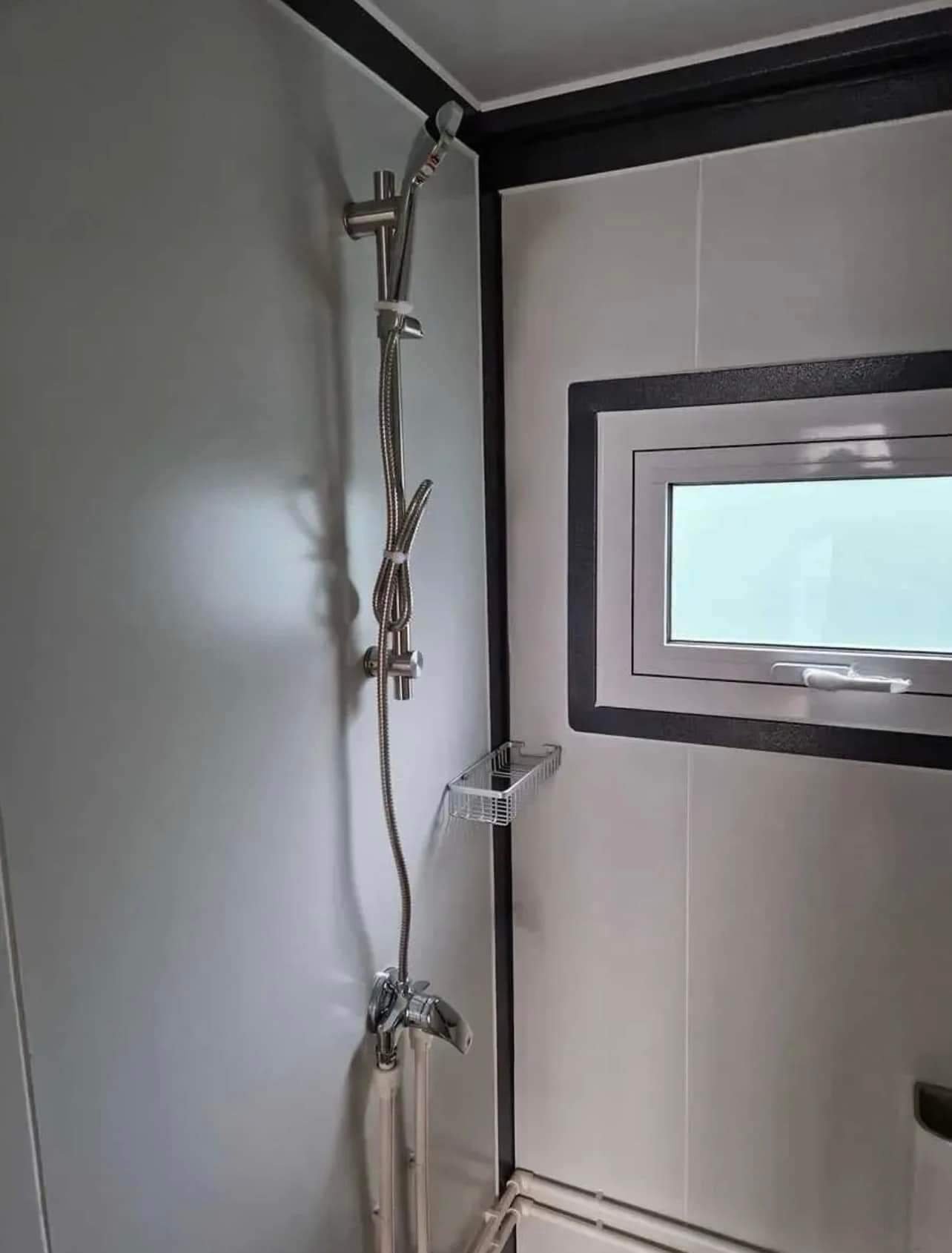

• Integrated Sanitary Suite: The restroom includes a stainless steel shower system (Grade 304 hot/cold valves), a PVC mirror box, and a silent exhaust fan. The WPC frosted glass door ensures privacy while maintaining a modern profile.

• High-Grade MEP Fittings: All internal plumbing utilizes PPR hot/cold water piping and PVC drainage with integrated insulation pipes to prevent freezing and condensation.

Technical Specifications:

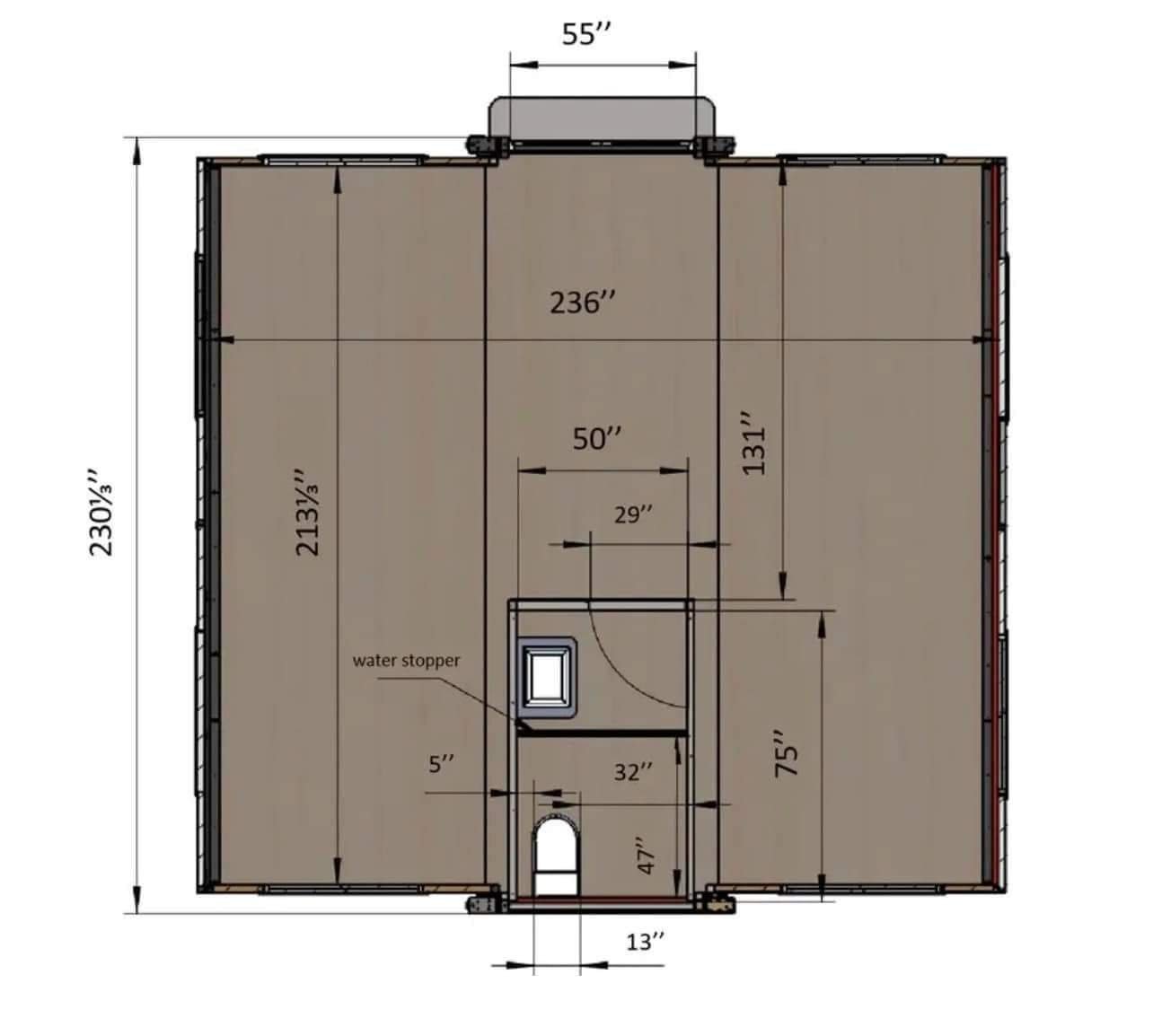

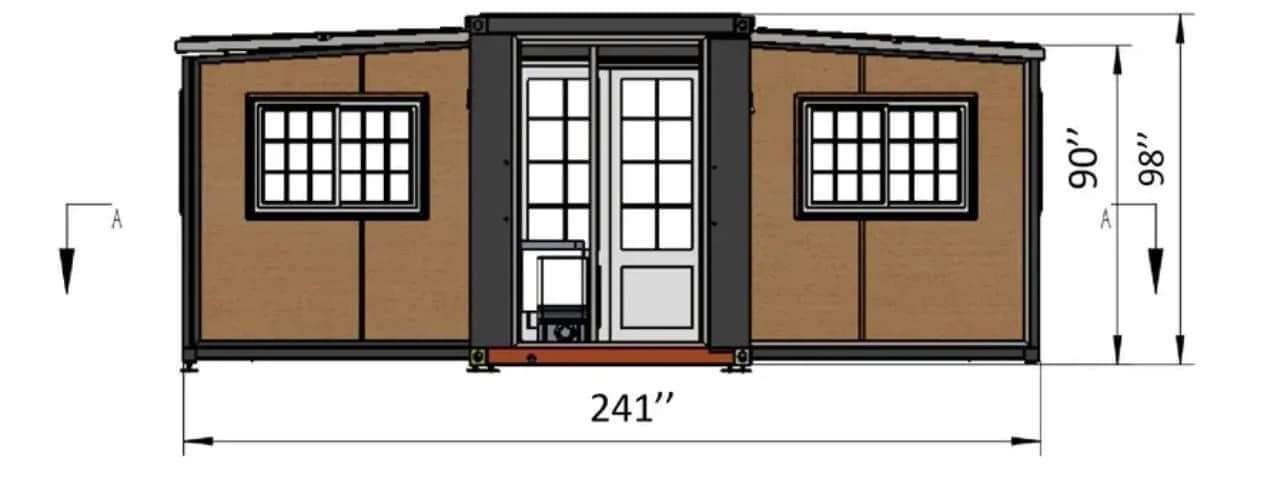

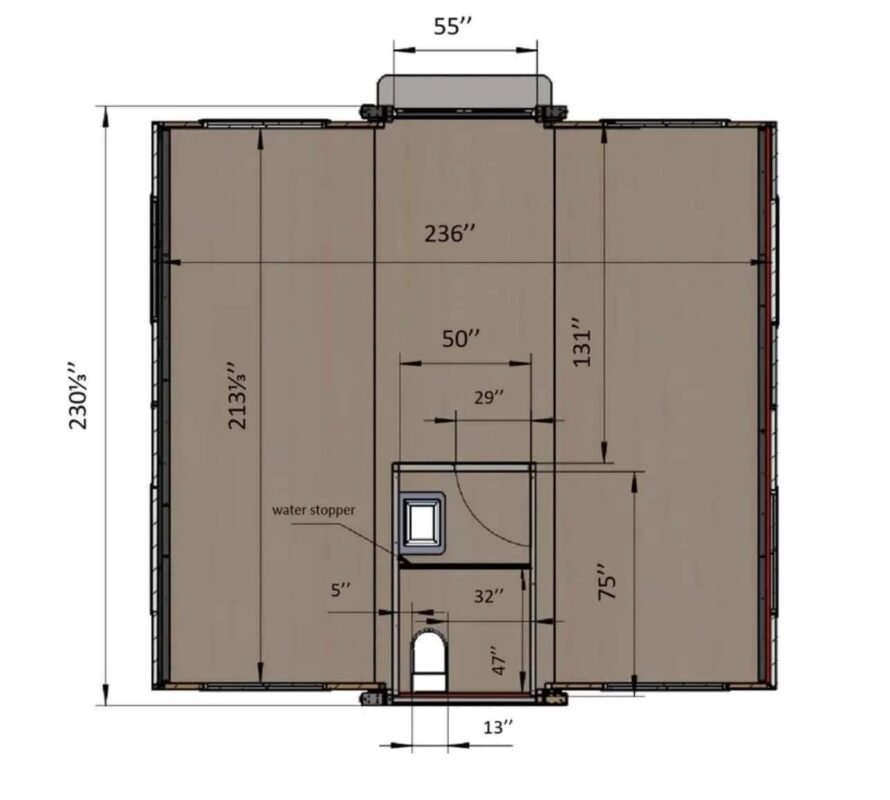

• Dimensions (Expanded): L 19ft x W 20ft x H 8ft (5.8m times 6.1m times 2.4m)

• Total Living Area: 380 sq ft (35.3m^2)

• Structure: Galvanized Steel Frame with Flame-Retardant Panels

• Windows: Double-Layer Tempered Glass / Lattice Design

• Entry: Heavy-Duty Aluminum Security Door with Integrated Lock

• Mechanicals: Hydraulic Expansion Brace (3000N) | phi 5mm$ Wire Rope

Sanitary & Plumbing Data:
