40ft Ultra-Low Super Freezer Container | -76°F to 30°F Deep Freeze | Dual Redundant 460V/230V 3P
$8,900.00
Guaranteed Safe Checkout
Features & Compatibility

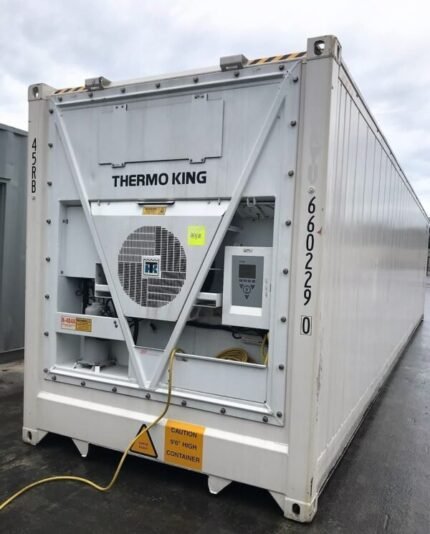

Engineered for the most demanding thermal requirements, this 40ft Super Freezer Container provides a stable ultra-low environment ranging from -76°F (-60°C) to 30°F (-1°C). Specifically designed for the storage of high-value pharmaceuticals, vaccines, and specialized industrial materials, this unit features a dual-redundant cooling system compatible with 460V and 230V 3-Phase power. The structural integrity is reinforced with MGSS (Manganese Stainless Steel) panels and specialized ultra-low temperature gaskets to ensure zero thermal leakage in extreme conditions.
Key Technical & Structural Features:
-
Ultra-Low Thermal Integrity: Integrated with specialized PU (Polyurethane) insulation using high-adhesion primers specifically formulated for ultra-low temperatures. This prevents delamination and maintains structural R-value even at -76°F.
-
Dual-Redundant Power System: Optimized for critical cargo protection, the refrigeration plant supports both 460V and 230V 3-Phase inputs, providing fail-safe operation for temperature-sensitive inventory.
-
Industrial Corrosion Protection: All Corten steel components are shot-blasted to Swedish Standard Sa 2.5. The exterior is protected by a multi-stage coating system: 30μm Zinc-rich primer, 40μm Epoxy zinc phosphate, and a 50μm Acrylic Topcoat (RAL 9010 White).
-
Understructure Protection: The chassis is treated with 150μm of Tectyl 121B undercoating to prevent corrosion from road salt, moisture, and industrial chemicals.
-
Premium MGSS Construction: The roof and side panels are manufactured from MGSS, primed with Epoxy zinc phosphate and finished with high-durability Acrylic to reflect solar heat and reduce energy consumption.
Technical Specifications:
-
Temperature Range: -76°F to 30°F (-60°C to -1°C)
-
Power Requirements: 460V / 230V 3-Phase
-
Exterior Finish: RAL 9010 (Pure White) High-Reflectivity
-
Weight: 9,880 lbs ($4,481$ kg)
-
Construction Standards: Swedish Standard Sa 2.5 / IICL June 2005
Dimensional Data Sheet:
| External dimensions | Internal dimensions | Door dimensions | Weight |
| Length: 40′ (12.19m) | Length: 39′ 3” (11.96m) | Width: 7′ 8” (2.34m) | 9,880 lbs. (4,481 kg) |
| Width: 8′ (2.44m) | Width: 7′ 8” (2.34m) | Height: 7′ 5” (2.26m) | |
| Height: 8′ 6” (2.62m) | Height: 7′ 10” (2.38m) |
